Sheet sets panel

The Sheet Sets panel offers a central location to create and manage sheet sets.

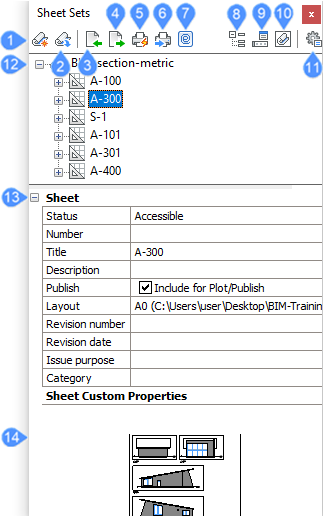

  1. New sheet set…
  2. Open sheet set…
  3. Import from XML…
  4. Export to XML…
  5. Plot
  6. Publish…
  7. eTransmit…
  8. Sheet selections sets…
  9. Custom properties…
  10. View categories
  11. Sheet set options…
  12. Sheets
  13. Sheet properties
  14. Sheet preview

New sheet set…

Opens the Create New Sheet Set dialog box.

Open sheet set…

Opens the Select a Sheet Set File dialog box.

Import from XML…

Allows you to import an XML file that was created in BricsCAD with Export to XML.... Opens the Import Sheet Set dialog box.

Export to XML…

Exports a sheet set in XML format. Opens the Export sheet set as dialog box.

Plot

Plots the currently selected sheet set(s), subset(s) or sheet(s).

Publish…

Publishes the currently selected sheet set(s), subset(s) or sheet(s). Opens the Publish dialog box.

eTransmit…

Launches the eTransmit command. The currently selected sheet set(s), subset(s) or sheet(s) are included in the eTransmit procedure. Opens the eTransmit dialog box.

Sheet selections sets…

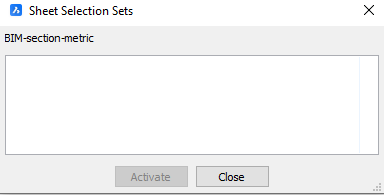

Opens the Sheet selection sets dialog box.

Custom properties…

Allows you to add custom properties for sheet sets and sheets. Opens the Custom properties dialog box.

View categories

Expands and collapses the currently loaded sheet sets.

Sheet set options…

Opens the Sheet Sets options in the Settings dialog box.

Sheets

Displays the opened and created sheet sets.

Right-click menus offer additional tools:

Renumber
Opens the Renumber Sheet Set dialog box, which allows you to renumber all sheets in the sheet set.
New Sheet
Displays the New Sheet(s) dialog box, which allows to add new sheets to the current sheet set.
New Subset
Adds a new subset to the current sheet set.
Insert Sheet List Table
Inserts the sheet list table into the current drawing.
Open
Opens the drawing with the layout of the selected sheet.
Open read-only
Opens the drawing with the layout of the selected sheet in read-only mode to protect it
Note: You can double-click on a sheet set or a subset to expand/collapse. Double-click on a sheet to open it.

Sheet properties

Displays the properties and variables of the selected sheet set, subset or sheet.

Sheet preview

Displays a thumbnail of the currently selected sheet set without opening it.
