ACTIVATESECTIONVIEW command

Sets viewpoint by section plane.

BricsCAD BIM

Description

Note: It requires at least one section plane in the drawing, made with the SECTIONPLANE command.
The command:
  • reorients the viewpoint to be head-on to the selected section plane.
  • creates a UCS in the selected section plane.
  • sets Off the Perspective view.

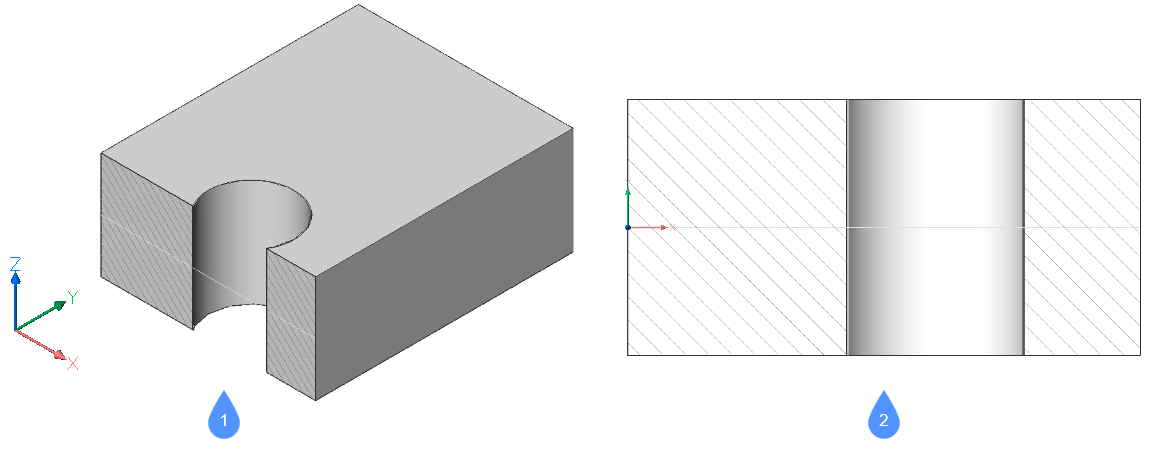

  1. Section plane
  2. The result of the command for the section plane.
